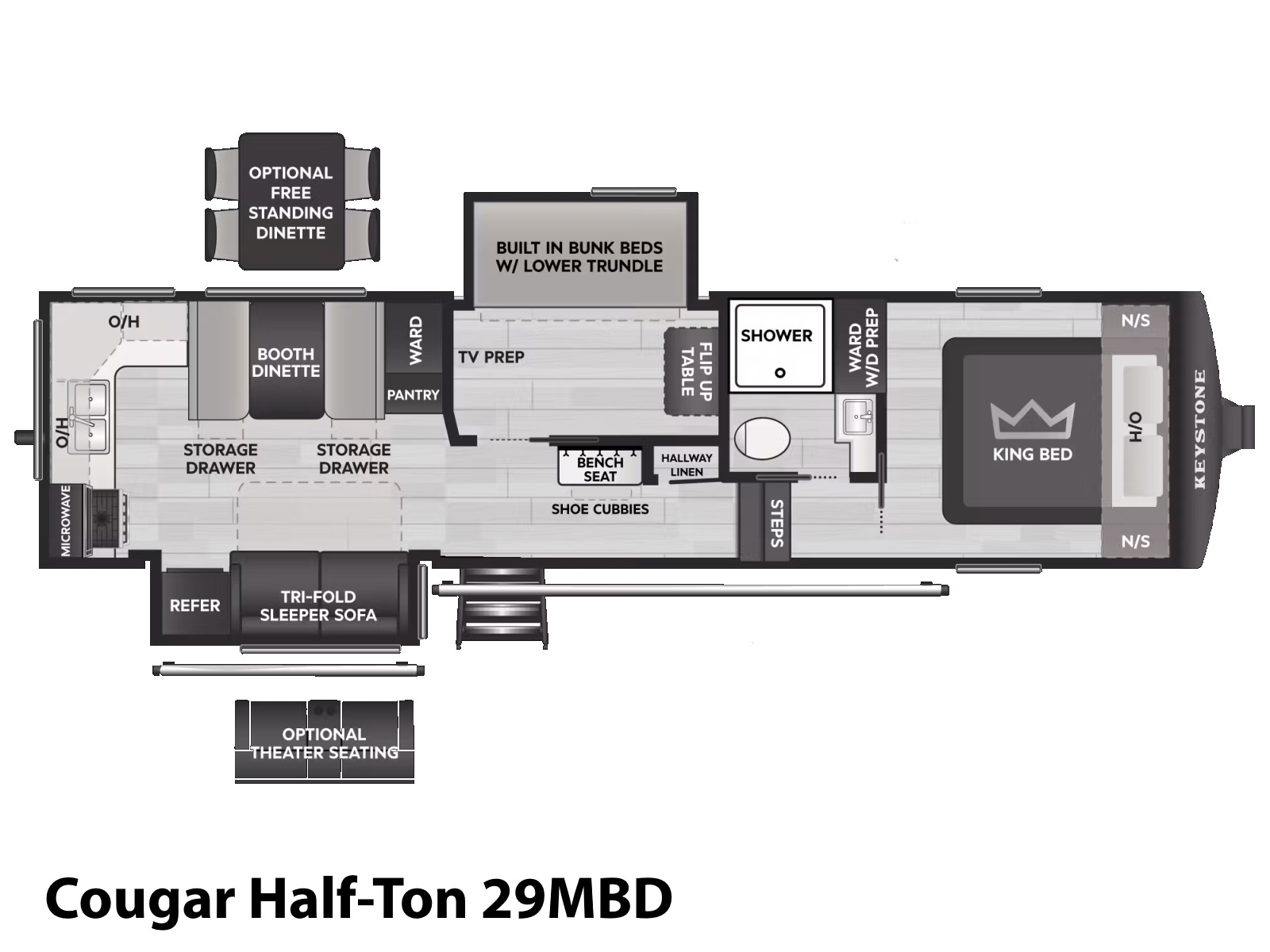

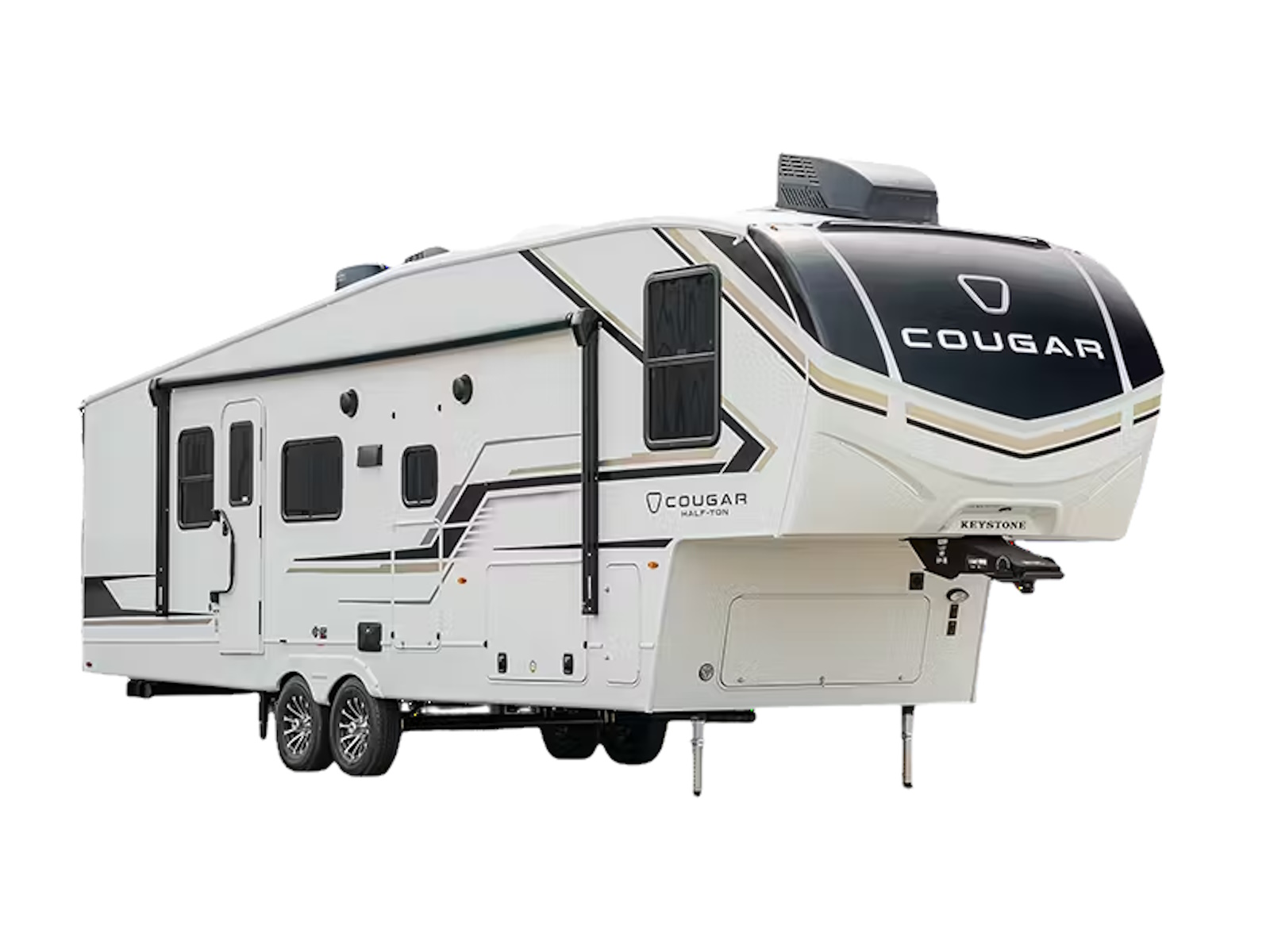

2027 Keystone RV Cougar Half-Ton 29MBD

Shorter, Lighterweight Floorplans Packed with Features

With the goal of delivering the best half-ton towable fifth wheel for owners, these models are packed with all of Cougar's premium features—from towing innovations like MaxTurn Technology™ and Road Armor™, to unexpected lightweight luxuries like zero-degree climate protection.

Cougar Towing With Confidence Package

A collection of features designed to provide ultimate safety and peace of mind.

Tow With Confidence

Cougar Premium: Towing With Confidence Package

Travel with assurance with running gear and accessories designed to provide an extra measure of security.

PACKAGE FEATURES

Running Gear

• Max Turn Technology
• Lippert Axles w/ Anti-Lock Braking System
• Bronze bushings, heavy duty 1/2 shackle plates and wet bolts
• Rainier "H" Rated 16 Ply Tires w/ 8 Year Warranty
• 16" 6 Lug Wheels
• Tire Linc TPMS Prep
• H" Rated Full Size Spare Tire
• Curt Helux Series Coil Spring Pin Box
• Curt Road Armor Shock Absorbing Equalizer

Visibility Accessories

• Reverse warning lights in taillight
• 2" Accessory Hitch (select models)
• 2" Towing Hitch with 4 way plug (select models)
• Rear observation camera prep

Lippert Tire Linc® TPMS Prep

Monitor tire pressure and temperature while in transit with this easy aftermarket add-on.

Lippert Tire Linc® TPMS Prep

REAL-TIME TIRE DATA TO HELP KEEP YOU SAFE ON THE OPEN ROAD

Always on and easy to install, Lippert's Tire Linc tire pressure monitoring system (TPMS) is engineered to deliver real-time tire status updates for your RV. With Tire Linc, you’ll have the tire pressure and temperature information you need to help you achieve better fuel efficiency, longer-lasting tires and most importantly, help prevent costly and dangerous tire blowouts before they occur. Many Keystone RV models are prepped to quickly and easily install the Tire Linc Monitoring System, which can be ordered here.

SYSTEM FEATURES INCLUDE:

• Actively monitors tire pressures and temperatures in real-time
• Provides push notifications when hazardous conditions occur to prevent blowouts
• Works seamlessly with the OneControl® RV app on iOS and Android devices
• Connects wirelessly through your smartphone via Bluetooth® connection
• Repeater technology strengthens wireless signal for reliable connectivity
• Kit includes four sensors and can also monitor up to 20 tires simultaneously
• Additional sensors are available for purchase for monitoring extra tires
• Sensors come with CR1632 batteries (replaceable)
• Repeater and dock assemblies included
• Easy, do-it-yourself installation

Four Season Camping

Best climate protection in the industry. Tested to a temperature rating up to 110°F and down to 0°F. 12V tank heaters included.

Cougar's Climate Guard Package

THE ULTIMATE IN RV WEATHER PROTECTION

For a longer and more comfortable camping season, Cougar's 2026 Climate Guard protection package is designed to keep owners comfortable in temperatures up to 110°F and down to 0°F. Available exclusively on Keystone Cougar Premium and Half-ton models.

Learn more about how Climate Guard provides year-round insulation as well as protection in cold winter and hot summer months.

BETTER CONSTRUCTION AND INSULATION FOR HOT & COLD

• Insulated gooseneck, bulkhead divider and sealed pin box (5th Wheels). Cougar fifth wheels feature a fiberglass insulated gooseneck, bulkhead divider wall, and a foam gasket sealed pin box to protect the upper deck from the elements.

EXTRA SECURITY WHEN TEMPERATURES DIP

• Heated pass-through storage (fifth wheels). A heat register is positioned behind the convenience center in the pass-through storage to prevent water lines from freezing.
• 12V electric heat pads on all holding tanks. Helps prevent holding tanks from freezing while camping and can also be used in transit.
• 30K BTU Furnace
• Heated and enclosed underbelly. Cougar's sealed Coroplast underbelly has a layer of astro-foil insulation beneath the holding tanks with a second layer of fiberglass insulation above the tanks. A heating duct runs adjacent to the water lines pumping heat around the fresh tank to prevent tanks, waterlines, and gate valves from freezing.
• Heated and enclosed convenience center.
• PEX plumbing. Resistant to corrosion, pitting, and scaling, this residential plumbing uses fewer fittings, thereby reducing potential leaks. When compared to conventional copper and CPVC lines, PEX aids with heat retention in hot water lines, and diminishes condensation in cold water lines. Perhaps most importantly, PEX plumbing has the ability to expand up to three times its diameter should water lines freeze.

WARM WEATHER COMFORT

• 18K Furrion High Efficiency Chill Cube A/C
• 15K Ducted Bedroom A/C
• 3rd A/C Prep
• Radiant foil barrier in front cap. Radiant foil reduces amount of radiant heat that can come from the units front cap during summer months.
• Tinted windows. Reflects the sun's rays to keep the coach cooler.

Cougar Max Turn

Combining focused design and unique product specifications, Max Turn Technology is the leader in optimum turn radius.

MaxTurn™ Technology

MAX TURN™ MAKES TURNING AND MANEUVERING A BREEZE

Keystone fifth wheel RV owners can make tight turns more confidently with Keystone's EXCLUSIVE MaxTurn™ Technology. Developed by the Keystone Innovation Lab, MaxTurn's patented tube frame design combined with a tapered fiberglass front cap provides and additional 8" of turning radius than the standard straight tube design. MaxTurn delivers an expected turning radius of more than 95° without an expensive and difficult to maintain swivel hitch pin.

Key features include:

• Single-piece bent tube replaces a welded three-piece frame
• Eliminates need for swivel hitch pin and the maintenance that comes with it
• 8" more turning radius, more than 95°
• Greater manueverability and safety
• Protects tow vehicle from damage

Innovation Leadership

These models feature exclusive ground-breaking components and technologies from the Keystone Inovation Lab.

HYPERDECK™ RV FLOOR

HIGH-PERFORMANCE, WATER RESISTANT RV FLOOR

Stronger, lighter and more resilient than traditional wood laminated flooring, Keystone's exclusive HyperDeck™ is an excellent example of how the Keystone Innovation Lab challenges industry norms to build better RV's. By its nature, traditional wood floor construction presents the possibility of taking on water, a watchout for RV owners who need to remain vigilant to keep moisture out of their coaches. Hyperdeck replaces wood with 100% inorganic materials, designed to resist water and water damage. That's peace of mind that's worth its weight in gold.

SIX WAYS HYPERDECK RV FLOORS OUTPERFORM TRADITIONAL LAMINATED PLYWOOD CONSTRUCTION

1. 100% inorganic and water resistant
2. Fiberglass-reinforced polypropylene layers increase strength and resist soft spots
3. Reduces flooring weight by up to 25% for easier towing
4. Less likely to degrade over time
5. Increased screw retention keeps RV build secure
6. High density foam and polypropylene construction increases insulation and dampens noise

Cougar's Climate Guard Package

THE ULTIMATE IN RV WEATHER PROTECTION

For a longer and more comfortable camping season, Cougar's 2026 Climate Guard protection package is designed to keep owners comfortable in temperatures up to 110°F and down to 0°F. Available exclusively on Keystone Cougar Premium and Half-ton models.

Learn more about how Climate Guard provides year-round insulation as well as protection in cold winter and hot summer months.

BETTER CONSTRUCTION AND INSULATION FOR HOT & COLD

• Insulated gooseneck, bulkhead divider and sealed pin box (5th Wheels). Cougar fifth wheels feature a fiberglass insulated gooseneck, bulkhead divider wall, and a foam gasket sealed pin box to protect the upper deck from the elements.

EXTRA SECURITY WHEN TEMPERATURES DIP

• Heated pass-through storage (fifth wheels). A heat register is positioned behind the convenience center in the pass-through storage to prevent water lines from freezing.
• 12V electric heat pads on all holding tanks. Helps prevent holding tanks from freezing while camping and can also be used in transit.
• 30K BTU Furnace
• Heated and enclosed underbelly. Cougar's sealed Coroplast underbelly has a layer of astro-foil insulation beneath the holding tanks with a second layer of fiberglass insulation above the tanks. A heating duct runs adjacent to the water lines pumping heat around the fresh tank to prevent tanks, waterlines, and gate valves from freezing.
• Heated and enclosed convenience center.
• PEX plumbing. Resistant to corrosion, pitting, and scaling, this residential plumbing uses fewer fittings, thereby reducing potential leaks. When compared to conventional copper and CPVC lines, PEX aids with heat retention in hot water lines, and diminishes condensation in cold water lines. Perhaps most importantly, PEX plumbing has the ability to expand up to three times its diameter should water lines freeze.

WARM WEATHER COMFORT

• 18K Furrion High Efficiency Chill Cube A/C
• 15K Ducted Bedroom A/C
• 3rd A/C Prep
• Radiant foil barrier in front cap. Radiant foil reduces amount of radiant heat that can come from the units front cap during summer months.
• Tinted windows. Reflects the sun's rays to keep the coach cooler.

A Better Fifth Wheel Chassis

VIDEO HIGHLIGHTS

• Rolled 1-piece I-beams eliminate potential welded failure points
• Full-width outriggers fully support sidewall weight
• Lighter stamped steel crossmembers replace welded rod-and-angle construction
• Rotocast 1-piece tanks eliminate seamed and glued failure points
• Steel straps prevent tanks from billowing in transit and impinging on the floor
• Patented MaxTurn™ bent-tube frame design increases turning radius without welds

12V Color-Coded Wiring Standard

SMART & SIMPLE

Learn how Keystone’s EXCLUSIVE color-coded 12V wiring is different from conventional RV wiring and why it’s a better for both owners and service technicians.

• Easy-to-trace circuits help dealer service techs troubleshoot and complete repairs more quickly, saving owner’s time and money.
• Clearly labeled wiring helps savvy owners with DIY diagnosis and repair of technical issues.

Features may include:

Exterior:

• Individually Engineered Structural I-beam chassis w/ stamped steel cross-members & outriggers
• Electric four-point auto leveling system
• Helux™ series coil spring pin box
• Heavy duty 4,400 lbs. axles with ABS brakes
• High Performance Road Armor™ shock absorbing equalizer
• Bronze bushings, heavy duty 1/2 shackle plates and wet bolts to extend axle longevity
• Goodyear Endurance 10-ply E-rated tires with road side assistance
• Custom aluminum luxury wheels and full size spare tire
• 2" Rear receiver hitch w/ 4-way connector: 300 lbs. tongue weight, 3,000 lbs. GTW
• 2" Rear accessory receiver with 300 lb. storage capacity
• Automotive-grade painted fiberglass front cap w/ KeyShield™ protection
• Front cap with dotless neon style LED lighting
• High intensity LED auxiliary light for hitching
• AlphaPly roof membrane w/ Limited Lifetime warranty
• Tinted safety glass windows
• Aluminum rear ladder
• Rear observation camera prep
• Reverse warning lights in taillight
• One-piece polypropylene underbelly
• Dual-heated holding tanks: 12v heat pads and furnace
• Friction hinge entry door
• Extra-Wide entry step with composite step treads
• Slam-latch baggage doors.
• Awning control switch located in storage compartment
• Key-Alike lock system
• Tough-ply flooring in main storage compartment
• Oversized front storage compartment with strut assisted baggage door
• Washable PVC sewer hose storage
• Heavy-duty battery box for dual batteries with EZ hook-up terminals
• Campsite convenience center for utilities that includes power tank fill
• Easy access panel for water pump service and filter maintenance
• Industry's best 55 gal. fresh tank capacity
• Industry leading holding tank securement with steel cross supports and Tank Guardian strap system
• Power Watchdog™ Safeview Smart RV power inlet: 50 amp
• 50 Amp electric, pre-wired and braced for 2rd AC
• Hot and cold exterior spray port
• Campsite tuned speakers
• Electric awning with gas strut arm with dotless neon style LED lighting

Interior:

• Tall slide out for added comfort and head room
• Night roller shades throughout
• Residential, shaker style hardwood cabinet doors and drawers
• Lock-It decorative crown molding at wall top edge
• Dimmable lighting: main ceiling, main slideout
• Recessed flush mount lights in main ceiling

Appliances & Utilities:

• Water management center providing individual shut-off valves for all fixtures
• Power converter with auto-detect battery recognition
• (2) 30 lb. LP tanks
• Exterior LP quick connect
• 60K Tankless on-demand water heater
• Furrion 18K BTU Chill Cube, ducted with Heat Pump
• Foil backed, foam core air conditioning duct with Tuf-Lok™ thermoplastic joiners
• 30K BTU ducted furnace
• LED HDTV in living area 12V Bluetooth® player with HDMI ARC control, 12v USB charging centers, & exterior TV hookup
• 0.9 Cu. Ft. microwave
• 10.6 cu. Ft. 12V Furrion Refrigerator
• 21" Furrion® range w/ Piezo ignition and glass stovetop cover
• Washer/dryer prep

Bedroom Features:

• Platinum Series 70" x 80" king bed option w/ underbed storage
• Dimmable lighting: main ceiling
• Outlets & USB on both sides of bed
• Cable TV / satellite ready
• Full wardrobe slide w/ drawers

Bathroom Features:

• Seamless, pressed countertops with large black stainless steel sink
• Residential vanity cabinet with drawers
• Linen storage in bathroom
• Large shower w/ glass door and skylight
• Dedicated shower light
• Oxygenics® shower head and hose
• Porcelain foot flush toilet
• Recessed medicine cabinet
• Towel rack

Weather Protection:

• Climate Guard protection package
• Heat-deflecting white sidewalls, membrane
• Radiant foil barrier in front cap
• Remote temperature probes
• Insulated gooseneck, bulkhead divider, and sealed pin box
• Insulated slide floors
• Two roof attic vents
• 12V electric heat pads on all holding tanks
• PEX plumbing

Safety:

• Breakaway switch
• GFI receptacles
• Carbon monoxide detector
• Smoke detector
• Propane gas leak detector
• Fire extinguisher

Options:

Exterior:

• Dual-pane, frameless windows
• Slide-topper package
• CSA construction and seal

Interior:

• Theater seat IPO tri-fold sofa

Appliances & Utilities:

• Furrion Quick Cool 15K BTU Ducted Bedroom A/C
